Theoretical application

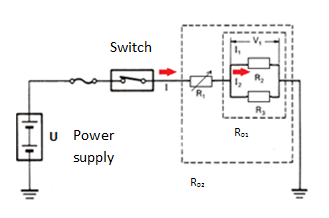

Determine the resistance R01 and R02, equivalent resistance of the circuit, (a combination of resistances R1 = 5 Ω, R2 = 2 Ω and R3 = 2 Ω which are connected in serial and parallel in the circuit as shown below) and the total current I flowing in the circuit, and currents I1 and I2 flowing through resistances R2 and R3. It is also known that the power of the circuit is U = 12V.
